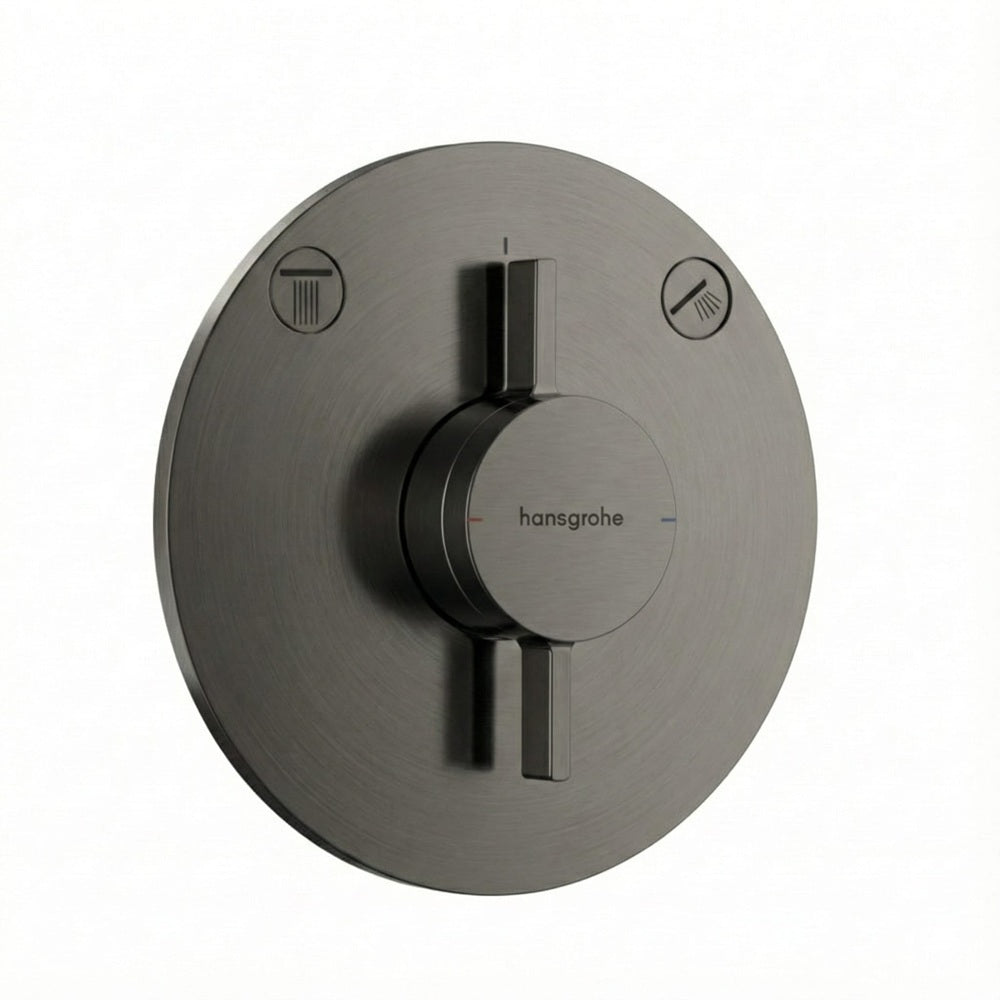

Hansgrohe Duoturn S Mixer For Concealed Installation 2 Functions Brushed Black Chrome 75418343

Hansgrohe Duoturn S Mixer For Concealed Installation 2 Functions Brushed Black Chrome 75418343

Model: 75418343

Specification Sheet (Click Here)

Finish: Brushed Black Chrome

Features:

• 2 functions
• volume control and diverter for 2 functions
• maximum flow rate at 3 bar: 29,5 l/min
• maximum flow rate at 1 bar: 15 l/min
• flow rate upper outlet: 29,5 l/min
• ceramic cartridge for temperature control, shut-off/ diverter valve
• easy installation due to pre-assembled function block
• handles always at the same height regardless of the installation depth of the basic set
• escutcheon can be aligned by +/- 3°
• material escutcheon: plastic
• material handles: metal
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• mixer is delivered with buttons Rain small, Rain large, hand sower, Waterfall, bath tub
• connection type: basic set iBox universal 2 (# 01500180)
• flow rate lower outlet: 29,5 l/mi
