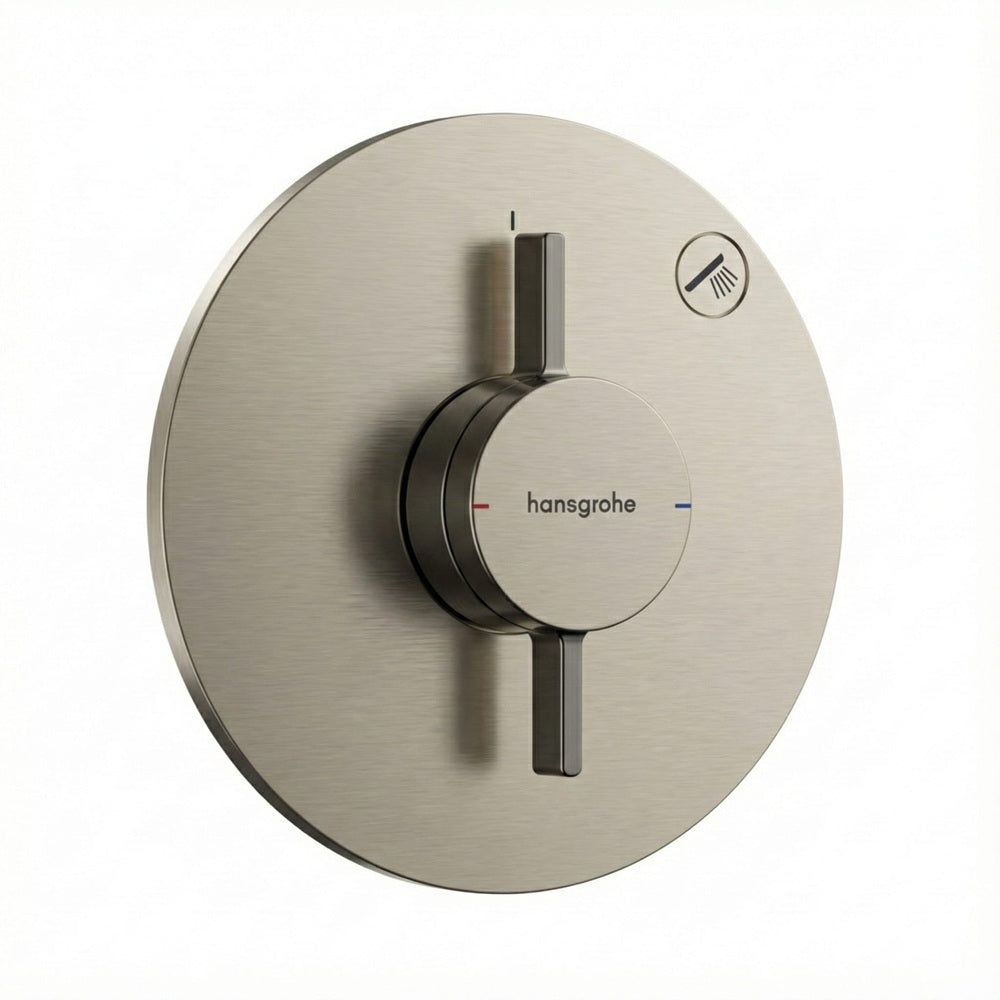

Hansgrohe Duoturn S Mixer For Concealed Installation 1 Function Brushed Nickel 75618823

Hansgrohe Duoturn S Mixer For Concealed Installation 1 Function Brushed Nickel 75618823

Model: 75618823

Specification Sheet (Click Here)

Finish: Brushed Nickel

Features:

• 1 function
• volume control for 1 function
• maximum flow rate at 3 bar: 29,5 l/min
• maximum flow rate at 1 bar: 15 l/min
• ceramic cartridge for temperature control, 1/2" ceramic shut-off valve
• flat escutcheon for more space in the shower
• easy installation due to pre-assembled function block
• handles always at the same height regardless of the installation depth of the basic set
• escutcheon can be aligned by +/- 3°
• material escutcheon: plastic
• material handles: metal
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• mixer is delivered with button hand shower
• connection type: basic set iBox universal 2 (# 01500180)
