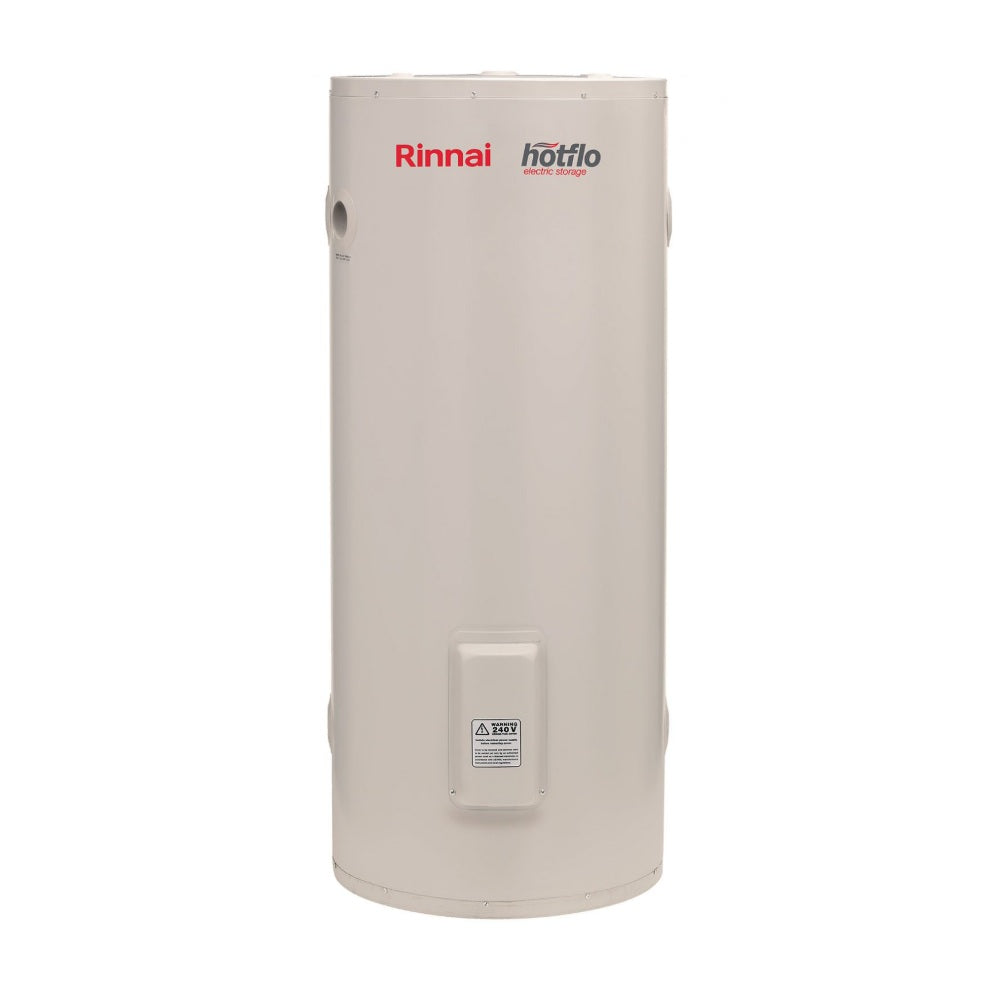

Rinnai Hotflo 125L Electric Storage Water Heater White EHF125S36

Rinnai Hotflo 125L Electric Storage Water Heater White EHF125S36

Model: EHF125S36

Specification Sheet (Click Here)

Finish:  White

Features:

With the ability to provide consistent hot water for up to 3-4 people*, the Rinnai 125L Electric Hot Water System perfectly suits installations for medium households.

Designed for peace-of-mind, the hot water tanks are thermostatically controlled with a safety temperature shut off feature. The unique blend of enamel and enhanced sacrificial anode protection extends its already impressive lifespan.

Featuring a single configuration, standard sizing for emergency changeovers and with internal / external applications available, updating existing or installing a new hot water tank is a breeze with minimal changeover cos

• Suitable for internal and external use
• Vitreous Enamel lined steel tank for added durability
• Inbuilt anode protection extends the life of the hot water tank
• Dual handed, allows increased flexibility during installation
• Pressure temperature relief valve included
• Thermostatically controlled with safety temperature shut off

Electrical Supply

AC 240V 50Hz

Tank Diameter

515

Heating Elements Available (kW)

1.8 / 2.4 / 3.6

Weight Empty (kg)

56

Overall Height

1245

Outlet Height

1020

Inlet Height

225

Electrical Connection Height – Lower (mm)

155

Electrical Connection Height – Upper (mm)

946 (160L tank only)

Relief Valve Setting (kPa)

1000

Expansion Control Valve Setting (kPa)

850

Max inlet pressure (with ECV – kPa)

680

Max inlet pressure (without ECV – kPa)

800

Water Connections

RP 3/4 20mm

Ingress Protection Rating (AS1939)

IPX4

Rated Capacity (Litres)

125
