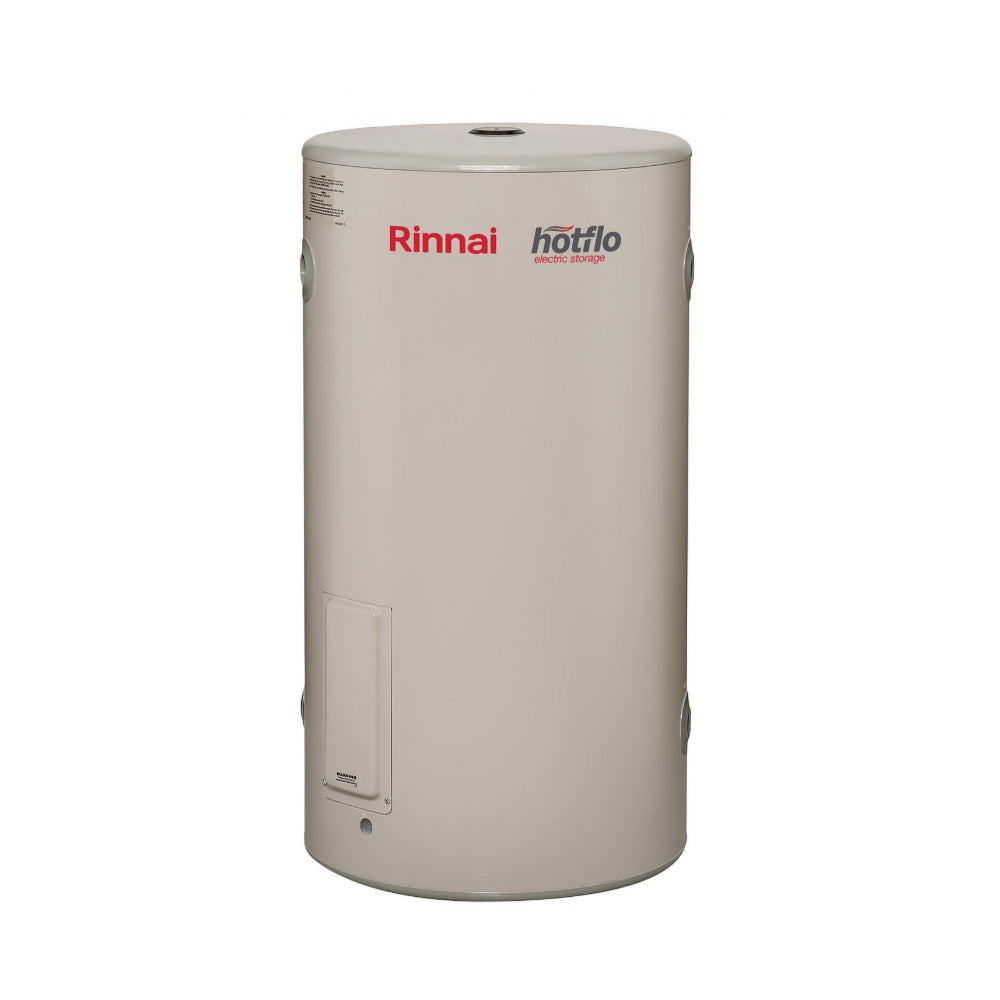

Rinnai Hotflo 80L Electric Storage Water Heater White EHF80S36

Rinnai Hotflo 80L Electric Storage Water Heater White EHF80S36

Model: EHF80S36

Specification Sheet (Click Here)

Finish:  White

Features:

Rinnai have the most effective and energy efficient medium electric storage systems to meet your household’s hot water demands. Because we are so confident in the quality of our 80L electric tanks we now offer a 10 year cylinder warranty.

• Vitreous Enamel lined steel tank for added durability
• Inbuilt anode protection extends the life of the tank
• Dual handed, allows increased flexibility during installation
• Pressure temperature relief valve included
• Suitable for internal and external use
• Thermostatically controlled with safety temperature shut off for added peace of mind

Electrical Supply

AC 240V 50Hz

Tank Diameter

515

Heating Elements Available (kW)

1.8 / 2.4 / 3.6

Weight Empty (kg)

43

Overall Height

900

Outlet Height

685

Inlet Height

225

Electrical Connection Height – Lower (mm)

155

Electrical Connection Height – Upper (mm)

N/A

Relief Valve Setting (kPa)

1000

Expansion Control Valve Setting (kPa)

850

Max inlet pressure (with ECV – kPa)

680

Max inlet pressure (without ECV – kPa)

800

Water Connections

RP 3/4 20mm

Ingress Protection Rating (AS1939)

IPX4

Rated Capacity (Litres)

80
