Mallow Smart Toilet Bidet Slim Seat (9 Functions) White

Mallow Smart Toilet Bidet Slim Seat (9 Functions) White

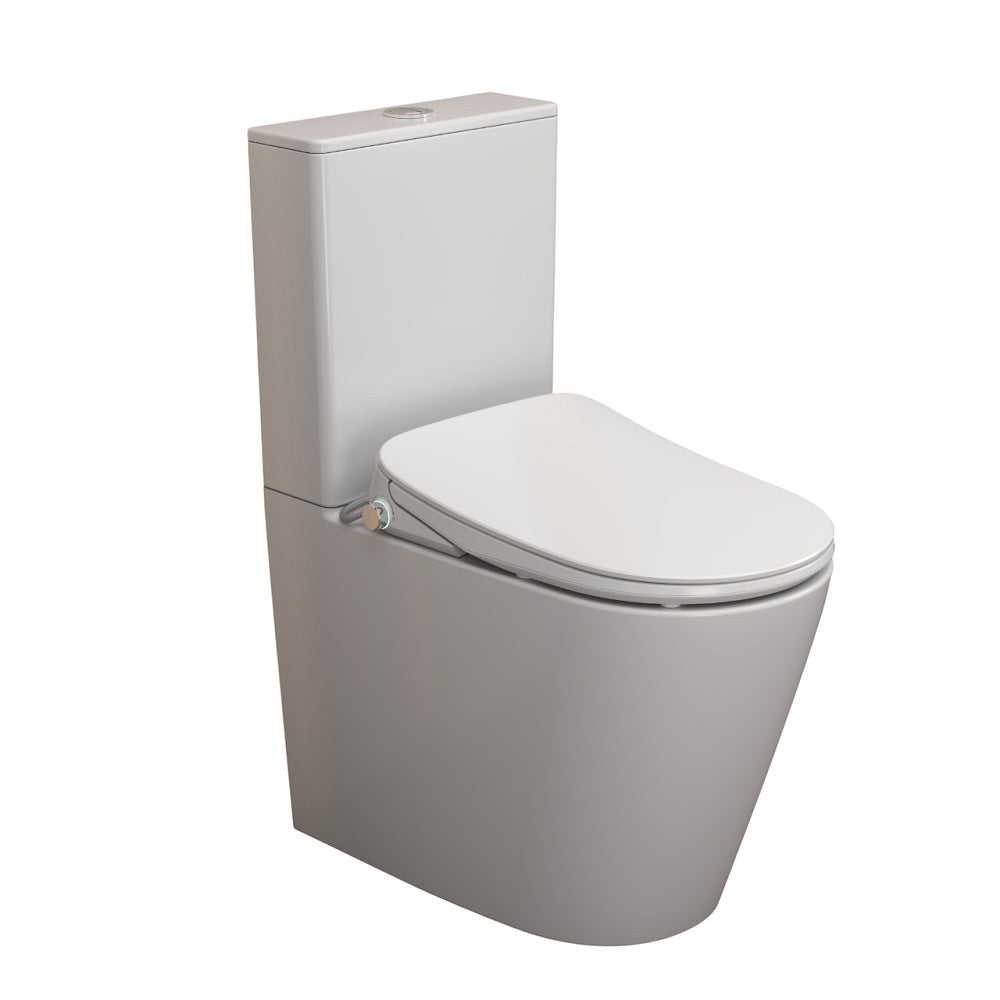

Toilet Suite VTS-01:

Specification Sheet (Click here)

Installation Manual (Click here)

• Size:660x380x865mm
• S-trap:75-160mm(1S32)
• S-trap:140-230mm(1S17)
• P-trap:180mm Roughing-in

Manufacturer Warranty:

• Residential: 15 years cover for replacement product or parts, 1 year labour.
• Commercial: 5 year cover for replacement product or parts, 1 year labour.

Smart Bidet Seat S1:

Instruction Manual (Click here)

Remote Control Instruction (Click here)

Specification Sheet (Click here)

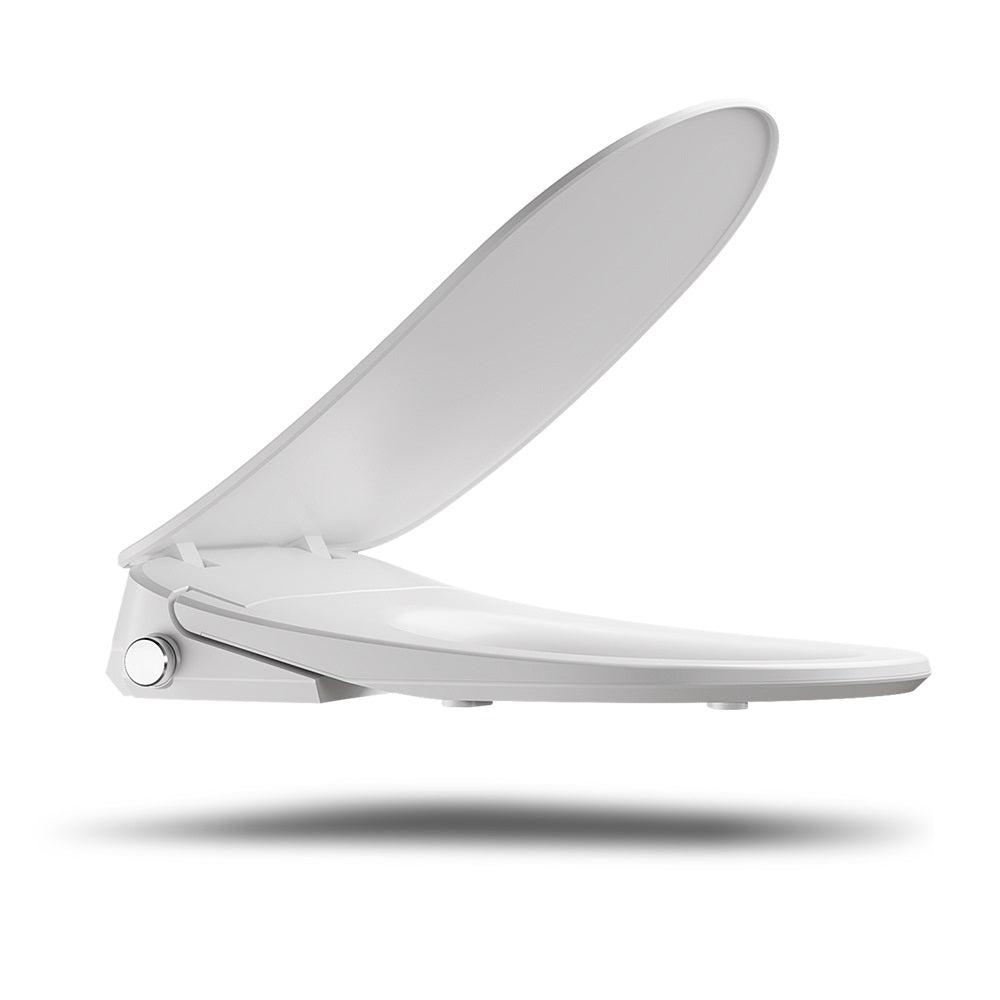

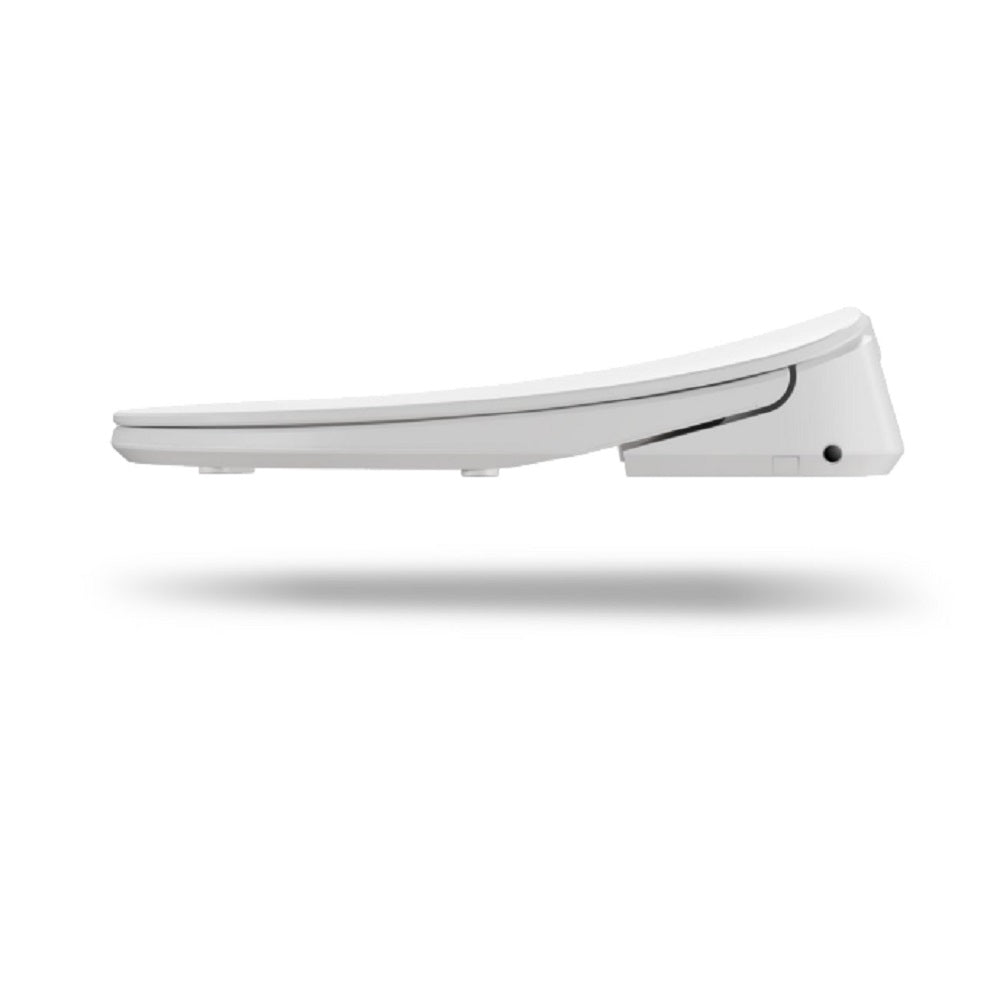

The wide, ergonomic seat optimally conforms to body curves, ensuring even pressure distribution for superior comfort. Ultra-slim profile with just 2 cm thickness at the front
and 11 cm at the rear.

Powered by Kyocera's CERAMIC INSTANT HEATING TUBE technology, which heats water instantly as it flows through, eliminating the need for a traditional warm water tank.

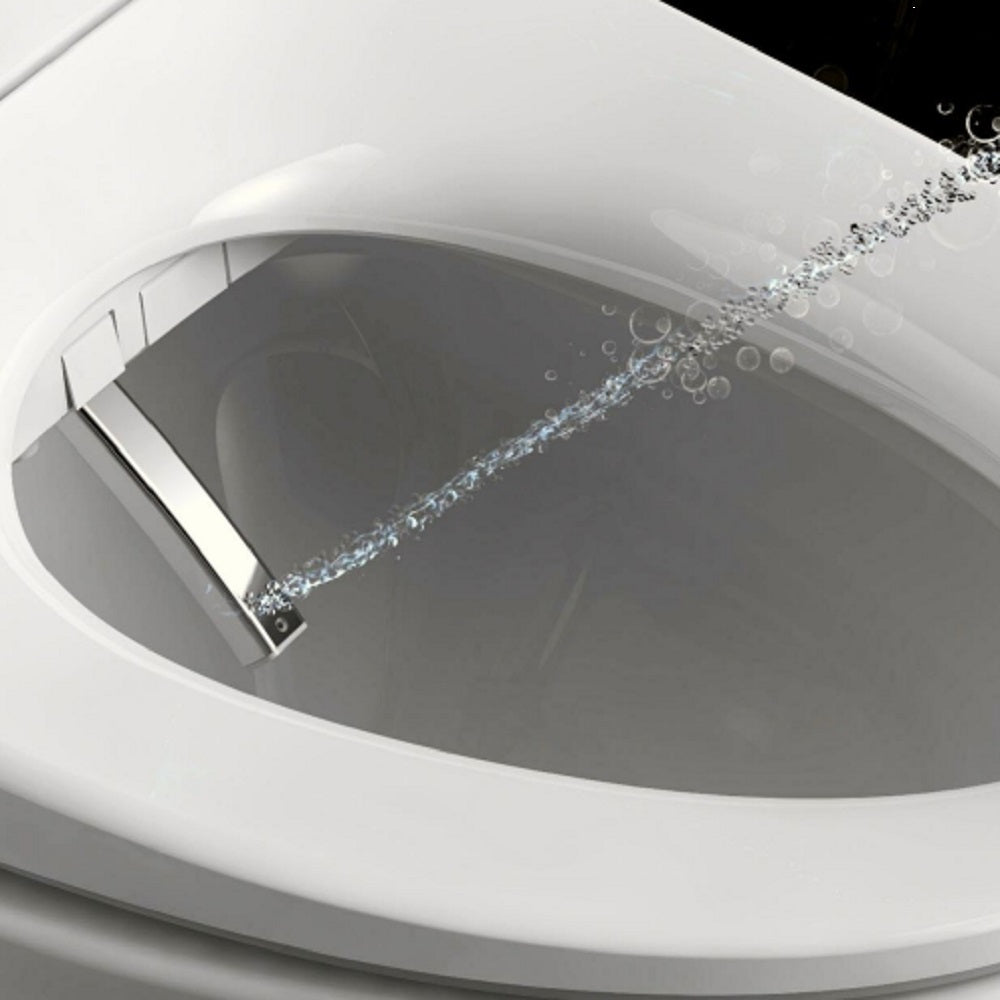

Air-pump delivers gentle, effective cleansing for enhanced comfort.

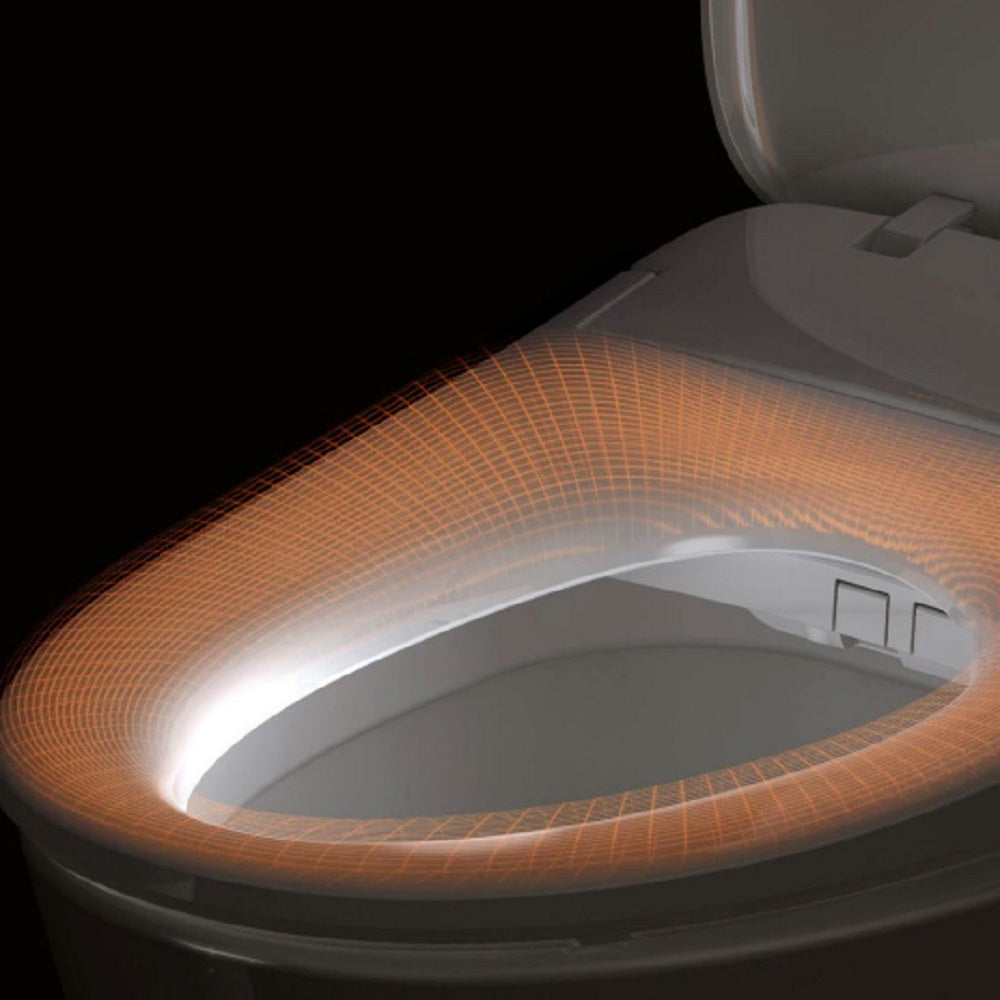

Select your ideal 6 Levels seat warmth for personalized comfort.

Plasma sterilization is a widely used technology in medical devices, pharmaceutical production, food packaging, and laboratory equipment sterilization. Operating at low temperatures and leaving no toxic residues, it uses radio frequency or microwave energy to generate plasma containing charged particles and free radicals (O·, OH·, O2-). These active particles, along with UV radiation, destroy microorganisms by breaking down cell membranes, degrading DNA, and oxidizing cellular proteins.

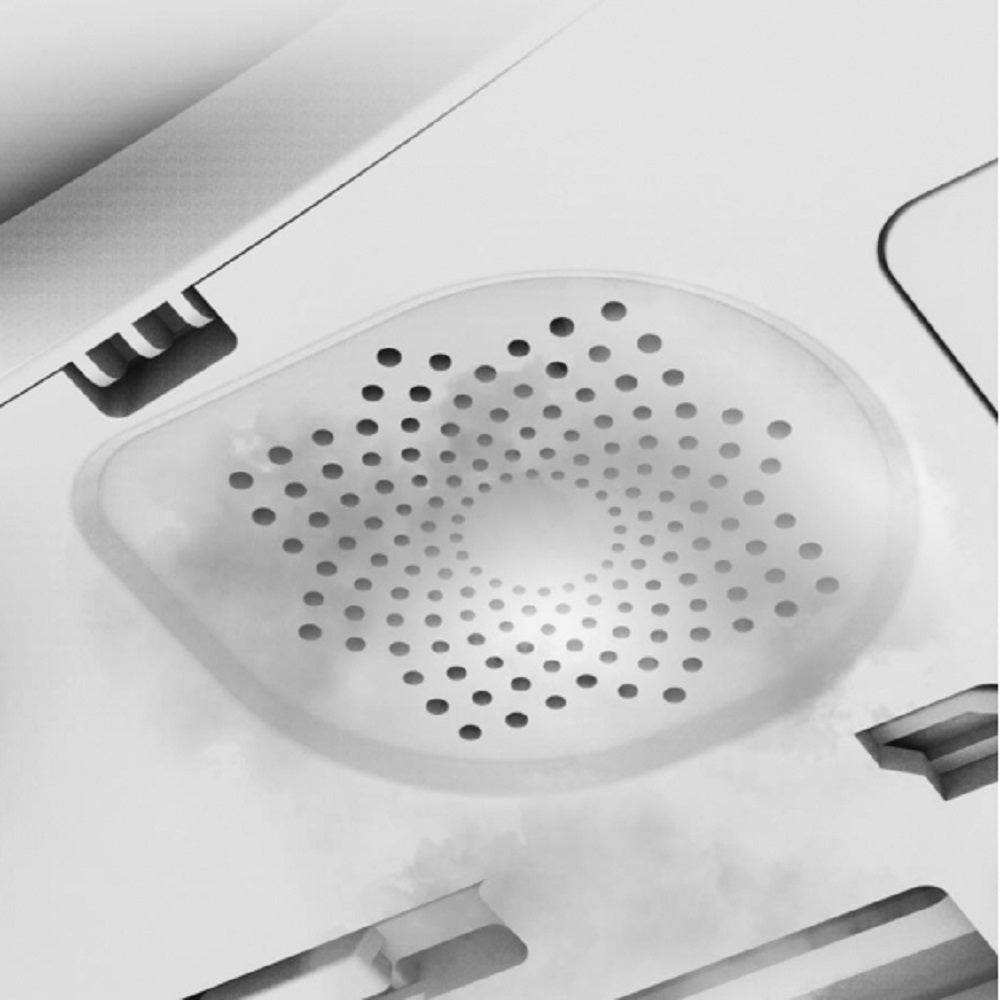

While using the toilet, odors are drawn away and discharged after being cleaned. Lightless catalytic technology is a process that activates oxygen molecules at room temperature through specially designed catalysts without requiring light exposure. Through catalytic oxidation reactions, it converts organic pollutants (such as formaldehyde, benzene, TVOCs, etc.) into harmless substances like carbon dioxide and water. This technology also provides deodorization and antibacterial functions.

9 functions in 1 button. Simplified user experience with all functions consolidated into one intuitive button - eliminating confusion and making operation effortless even in lowlight conditions.

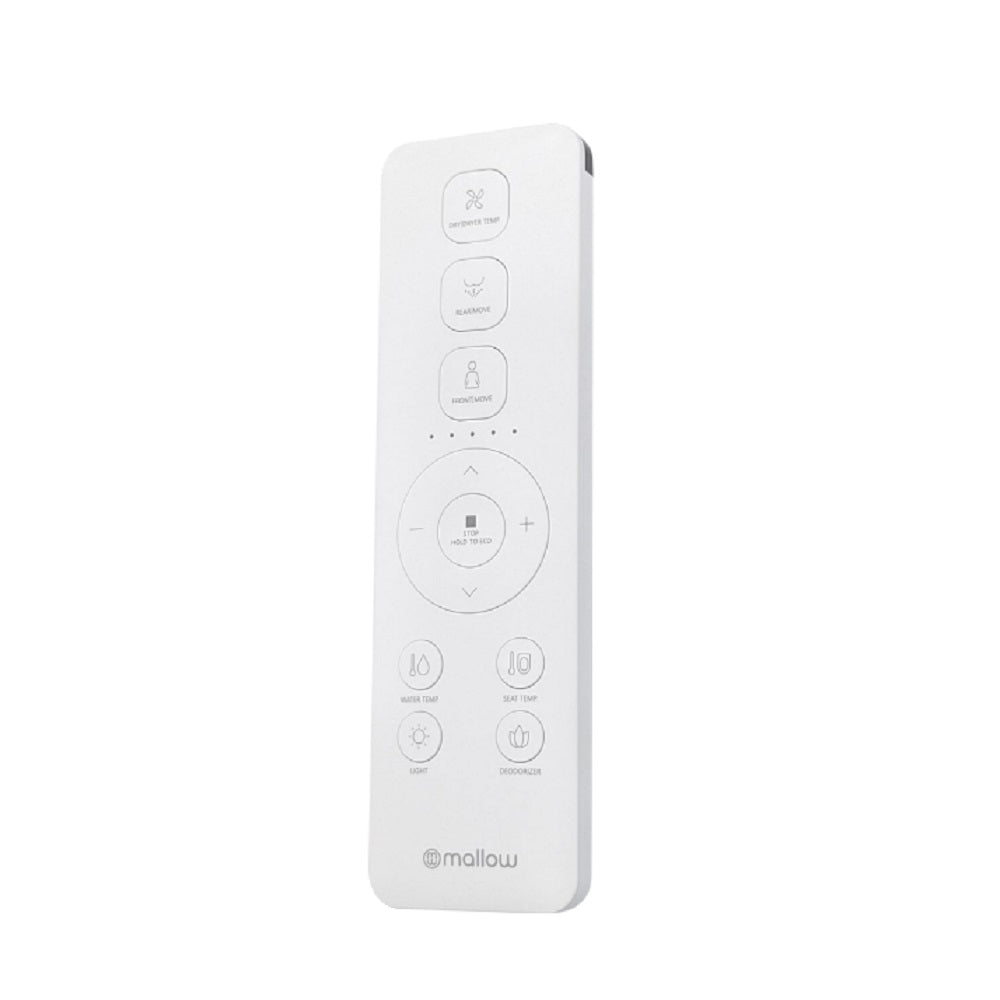

Wireless Remote control The USER-FRIENDLY wireless remote control is easy to read and press, and comes with a wall mount bracket that can be placed on either side of the toilet.

Technical Specifications

Main Unit

• Rated Voltage: 220V-240V, 50Hz~60Hz | 230V, 50Hz
• Rated Power: 1070-1140W | 1080W
• Water Pressure Range: 0.08MPa - 0.8MPa (Static Pressure)
• Power Cord Length: Approximately 1.6m

Cleaning Device

• Heating Power: 1600W
• Water Temperature: 6-level adjustment
• Water Volume: 5-level adjustment
• Cleaning Modes: Rear Washing/Oscillating Washing, Front Washing/Oscillating Washing
• Nozzle Position: 5-level adjustment
• Water Pressure Protector: Pressure maintaining device, Automatic pressure relief device
• Anti-Fouling Device: Anti-siphon device, Anti-backflow device, Filter device
• Safety Device: Water temperature sensor, Dry heating protection, Thermal fuse, Ground protection, Leakage protection, Thermostat, Anti-freezing and anti-cracking device

Drying Device

• Warm Air Volume: Over 0.2m³/min
• Warm Air Temperature: 6-level adjustment
• Heating Power: 200W
• Safety Device: Over-heating protection, Thermal fuse

Deodorisation

• Deodorisation Method: Photocatalyst-free

Heated Seat

• Surface Temperature: 6-level adjustment
• Heating Power: 50W
• Open and Close Device: Soft close
• Low Temperature Burn Protection: After 10 minutes of use, the seat temperature will automatically drop to a low level
• Safety Device: Seat sensor, Temperature sensor, Bimetallic thermostat, Thermal fuse

Caring Device

• Night Light Assembly: Smart, Always on, Always off
• Noise-Free Setting: The buzzer is off at night for a quiet environment
• User ID Setting: Prevents interference when used by multiple users

Antibacterial Site

• Components: Seat, Nozzle

Manufacturer Warranty:

• Residential: 3 years cover for replacement product or parts, 1 year labour.
• Commercial: 1 year cover for replacement product or parts, 1 year labour.
