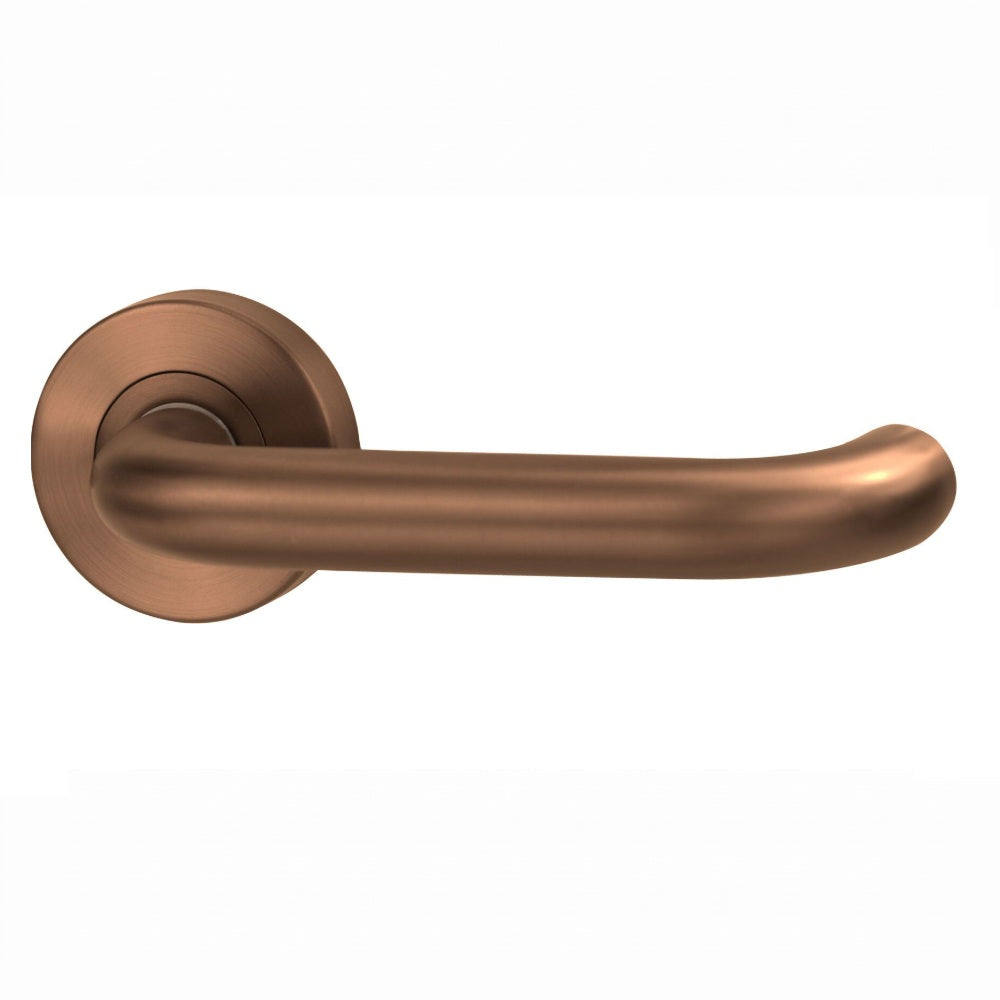

Lockwood Vivid Lever V2 Passage Set with Latch Satin Bronze VIV1/V2BZPVD

Model: VIV1/V2BZPVD

Finish: Satin Bronze

Description:

The Lever 2 handle (140mm length, 60mm projection) is a non-locking passage set - the latch retracts from either side with no key or turn required. Supplied with a 60mm tubular latch suitable for passage door applications. The rose trim features fully concealed fixings beneath a removable trim plate.

Features and Specifications

• Lever 2 dimensions: 140mm length, 60mm projection
• Lever 2 complies with AS1428.1-2021 for accessible and mobility design
• Rose: Round rose with fully concealed fixings beneath removable trim
• Latch: 60mm tubular latch suitable for passage door applications
• Tested to D7 durability rating under AS4145.2-2008, equivalent to 300,000 operating cycles
• Rated C6 corrosion resistance under AS4145.2-2008, tested to 168 hours neutral salt spray
• Fire rated up to 2 hours on compliant door assemblies when paired with Vivid Collection escutcheons and a Lockwood Synergy mortice lock, tested to AS1905.1-2015
• Pack includes: 2 x lever, 2 x rose trim, passage latch, face plate, 2 x spindle, 2 x springs, 2 x through-fix screws, 2 x hex inserts, striker plate with dust box, 4 x timber mounting screws


The Lockwood Vivid® Collection Lever 2 Passage Leverset is a non-locking internal door set for hallways, living areas and corridor doors in residential and multi-res applications, backed by a 25-Year Mechanical Warranty.

Manufacturer's Warranty: 25-Year Warranty (conditions apply)
